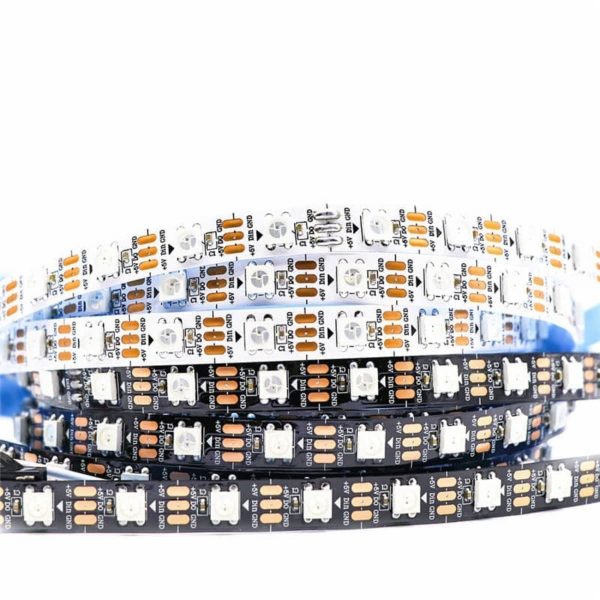

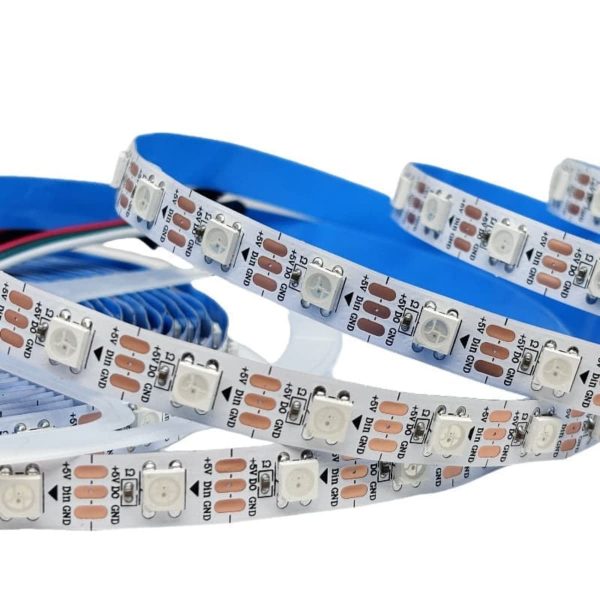

WS2812B Addressable SMD 5050 Magic RGB Smart LED Strip Lights

WS2812B Addressable SMD 5050 Magic RGB Smart LED Strip Lights

Name: WS2812B Addressable SMD 5050 Magic RGB Smart LED Strip Lights
Availability: InStock

Experience vibrant, programmable lighting with our WS2812B Addressable RGB LED Strip. Featuring an integrated 5050 SMD chip and individual pixel control, it delivers endless creative possibilities for stage, decor, and smart home lighting. Reliable performance meets factory-direct wholesale pricing.

Product Specifications :

Light Source Type : SMD 5050

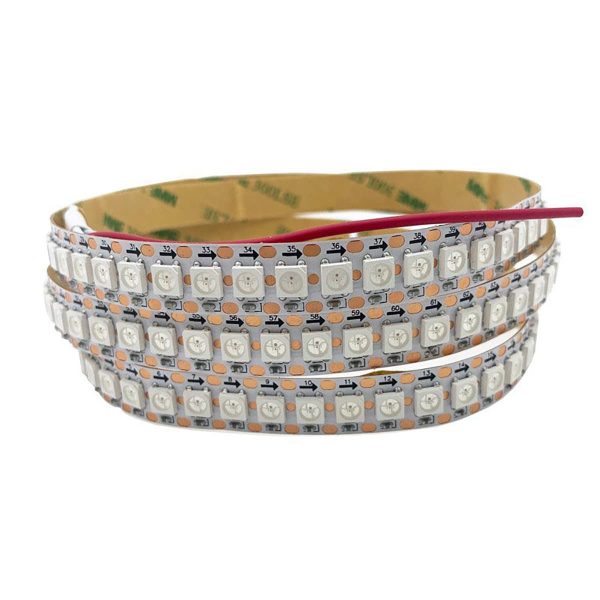

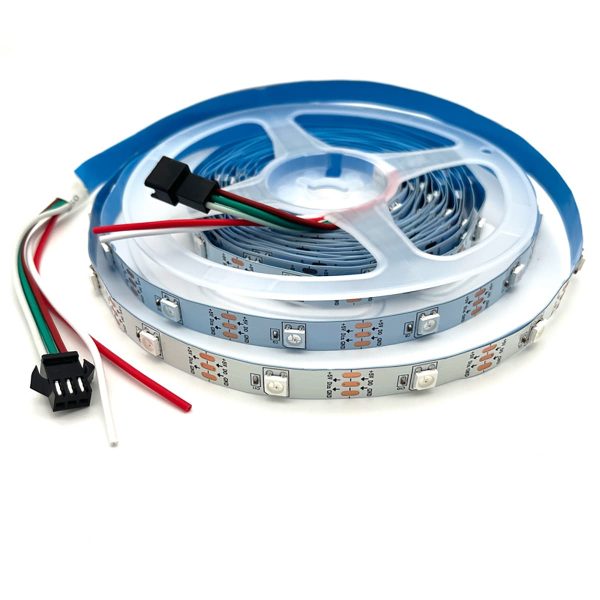

LED Density : 30 LEDs/m; 60 LEDs/m; 96 LEDs/m; 144 LEDs/m

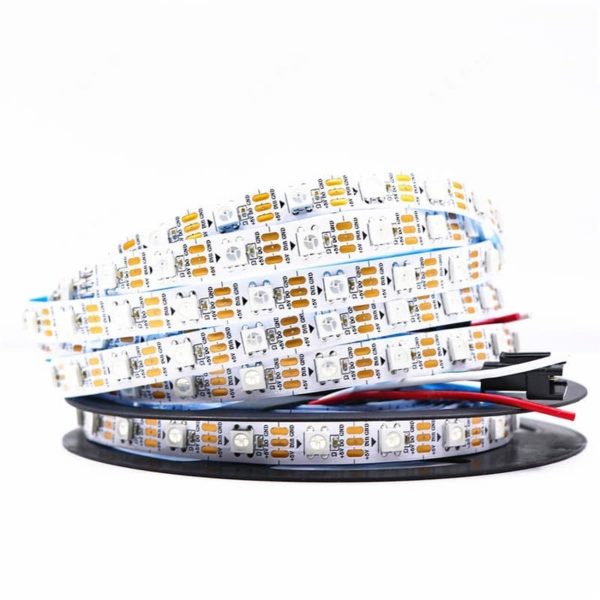

Color : White PCB; Black PCB

Input Volotage : DC 5V

CCT/Lighting Color : Magic RGB

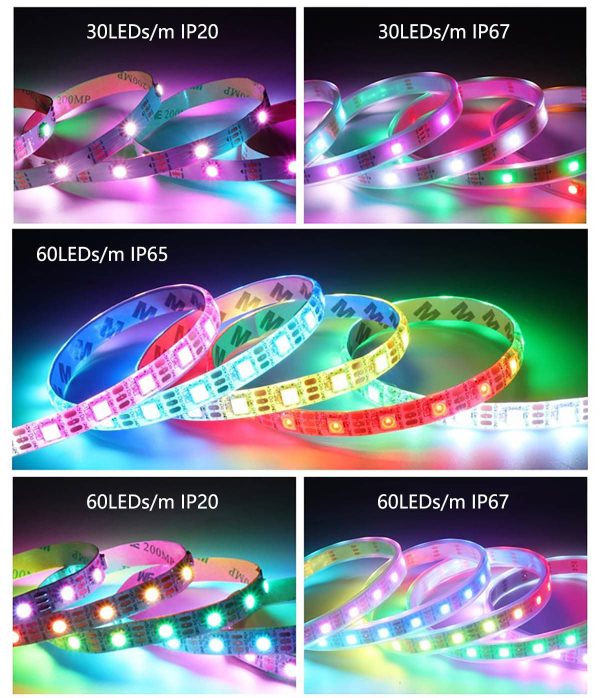

IP Rating : IP20 Non-Waterproof; IP65 (Epoxy Coated); IP67 (Silicone Tube)

CRI : >70

Beam Angle : 120°

Power Supply : Plug-in DC Powered

Dimming Function : Dimmable

Control Method : App+Voice + Music Sync Control; IR Remote; Smartphone App Control

Customization Services ： Custom Length, Custom Packaging, Customized Kit Solutions

Color / Finish

LED Density

IP Rating

Clear

Add to Quote List

To arrange a product sample or test unit for your project, please submit your request below.

Request a Product Sample

Category : SMD LED Strip Lights Series

Your Trusted Partner for Steady Wholesale Supply

Low MOQ
Factory Price
Delivery time:10-15 working days

Method shipping: By air/By sea/By express
Warranty: Usually about 2 years
Payment terms: T/T(wire transfer) and Western Union

WS2812B Addressable SMD 5050 Magic RGB Smart LED Strip Lights – Intelligent Dream Color for Dynamic Lighting Projects

Product Overview

Unlock the potential of modern lighting with our WS2812B Addressable RGB LED Strip. Unlike standard RGB strips, the WS2812B features a built-in control IC within each 5050 LED bead, allowing for individual pixel control. This means you can create complex, synchronized color-chasing patterns, flowing effects, and high-speed animations, making it the premier choice for professional decorative, stage, and architectural lighting.

Key Features

Individual Pixel Addressability: Every single LED can be programmed individually, offering ultimate creative freedom for complex light shows.
High-Quality 5050 SMD: Built with premium-grade chips for maximum brightness, consistent color rendering, and long-term durability.
Integrated Intelligent Control: The built-in IC design simplifies your circuit layout, reducing the need for external components while ensuring stable signal transmission.
Easy Programming: Fully compatible with popular controllers like Arduino, Raspberry Pi, and other SPI-based LED lighting systems.
Professional Customization: As a factory-integrated exporter, we provide tailored solutions including custom PCB layouts, branded packaging, and logo customization to meet your specific project requirements.

Technical Specifications

LED Type: 5050 SMD RGB with integrated WS2812B IC
Control Protocol: Single-wire SPI
Input Voltage: 5V DC
Color Capability: Full color (24-bit)
Ideal For: Stage lighting, commercial signage, holiday decor, gaming setups, and artistic lighting installations.

Input Voltage	DC 5V
IP Rating	IP20 Non-Waterproof, IP65 (Epoxy Coated), IP67 (Silicone Tube)

Technical Specifications :

LED Density : 30 LEDs/m; 60 LEDs/m; 96 LEDs/m; 144 LEDs/m

Light Source Type : SMD 5050

Color : White PCB; Black PCB

Input Volotage : DC 5V

CCT/Lighting Color : Magic RGB

IP Rating : IP20 Non-Waterproof; IP65 (Epoxy Coated); IP67 (Silicone Tube)

Dimming Function : Dimmable

Control Method : App+Voice + Music Sync Control; IR Remote; Smartphone App Control

Power Supply : Plug-in DC Powered

CRI : >70

PCB Width : 5.5mm; 10mm; 12mm

PCB Material : FPCB 2oz (Enhanced Heat Dissipation)

Cutting Length : 16.67mm

Wattage : 34.5w/m

Reel Length : 5m/reel

Max Run Length : 5m

IP Rating : IP20 (Non-Waterproof)

Beam Angle : 120°

Lifespan : 50,000 hours

Operating Temperature : '-20°C to 45°C

Certification : CE, ETL

Luminous : 100–120 lm/W

Commercial & Logistics Information :

MOQ : 1000m

Lead Time : Samples in 3-5 days, Bulk order in 15-20 days

Warranty : 2 Years

Incoterms : FOB / CIF / EXW

Custom Options : Custom Length, Custom Packaging, Customized Kit Solutions

Shipping Method :

Small Samples/Urgent Orders: By International Express (DHL, FedEx, UPS, TNT). Fast and reliable, door-to-door service.
Mid-size/Time-sensitive Orders: By Air Freight. Economical for medium-volume shipments with a shorter transit time compared to sea freight.
Bulk/Wholesale Orders: By Sea Freight (FCL/LCL). The most cost-effective solution for large-scale shipments to global ports.
Note: We can arrange shipments under FOB, CIF, or DDP terms based on your preference and project requirements.
